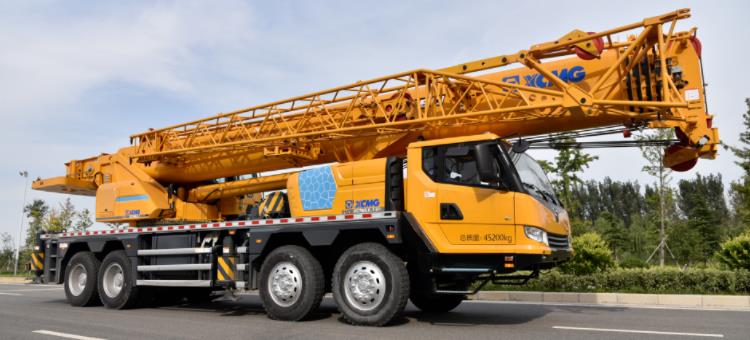

  • Six-section 55m main boom XCT60L6_1 XCMG crane


At present, the products in the industry that can drive with full counterweights have the problems of insufficient power for heavy-duty transitions due to their low power matching level. On the other hand, not to mention low gradeability, high fuel consumption, and poor transfer experience with full counterweight, which affects hoisting revenue.


XCMG XCT60L6_1 carries 15.5t full counterweight and heavy-duty transition. On the power system, XCT60L6_1 is equipped with an 11-liter 360-horsepower engine with a maximum output torque of 1800N.m and a climbing force of 49%. It has strong power and no pressure on the transition! Double reduction axle configuration, the front axle uses disc brakes with better braking performance to ensure braking safety and power requirements under heavy-duty driving!


The XCT60L6_1 chassis adopts a G-type off-road 46t load-bearing chassis, a high-strength, anti-twist box-type frame, and the axle load is evenly distributed in the transportation state, and the load-bearing capacity is excellent.


The middle part of the frame carries an 8.2t counterweight, double-cylinders are hooked up to realize self-disassembly; the rear carries a 7.3t counterweight and U-bolt connection, no frequent disassembly is required, which saves work preparation time.


XCT60L6_1 uses a 100ml large-displacement dual-variable pump, which has a displacement of 20% higher than that of the same type. This avoids insufficient displacement, resulting in insufficient product speed and power, and extremely unstable compound actions or even unable to perform compound actions.


Large displacement variable pump + quantitative motor lifting system, the whole system is adjusted by the pump variable, the output flow is large, the system is stable and reliable, and can stand the test of time.


XCT60L6_1 has six 55m main booms, 7.9m span plus 15.5t full counterweight, and the maximum lifting weight of the full boom is 8.6t, which surpasses similar products by 13% in comprehensive lifting performance. The key configuration such as gearbox, axle, onboard balance valve and other key configurations are higher than similar products.



 Reprint from network
