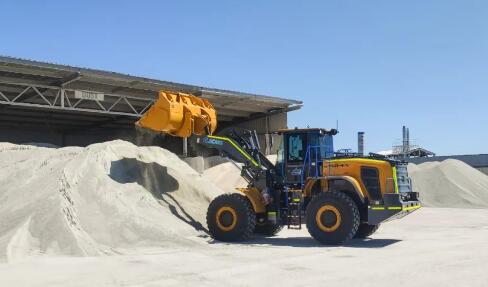

Recently, XC968-EV pure electric loader was exported to the high-end market in Oceania.
XC968-EV pure electric loader is the new-generation loader of XCMG designed with international advanced technology and independent intellectual property right, featuring environmental protection, strong power, solidity and reliability, high efficiency, and energy conservation and easy maintenance, which is the environmentally friendly, energy-saving and efficient solution for multiple applications including construction sites, mines, ports, and roads, etc.
The rated power is up to 280kW to supply stronger power to the machine, which is improved by more than 10% compared with that of the fuel loaders. The acceleration performance is also improved by more than 50% due to the quick response of the motor.
Environmental protection: It is configured with a pure electric system with zero-emission and lower noise by 10-20dB than traditional loaders.
Energy-efficiency: Compared with traditional loaders, the transmission efficiency is improved by more than 20% with braking energy recovery.
Cost performance: The fuel cost conservation is more than 60%, that the longer it is used, the higher the operating income will be. Meanwhile, the simple structure of the pure electric system will ensure easy maintenance to save time, materials, and labor costs.
In accordance with different materials and operating conditions, the optional configurations include buckets of 2.5-5.0m3, as well as quick-changing and side-dumping tools.
Description | Specifications | Unit |
Rated load | 5800 | kg |
Bucket capacity | 3.2 | m3 |
Operating mass | 18800 | kg |
Rated power of the motor | 270 | kW |
Dumping height | 3370 | mm |
Dumping range | 1200 | mm |
Wheelbase | 3350 | mm |
Wheel tread | 2250 | mm |
Maximum breakout force | 170 | kN |
Maximum traction force | 174 | kN |
Total cycle time | 9.7 | s |
Minimum turning radius (tire center) | 6005 | mm |
Tire specification | 23.5-25 | / |
Steering angle | 40 | ° |
Overall machine dimensions (L×W×H) | 8660×2996×3475 | mm |
Forward I/II | 18/36 | km/h |
Reverse I/II | 18/36 | km/h |
