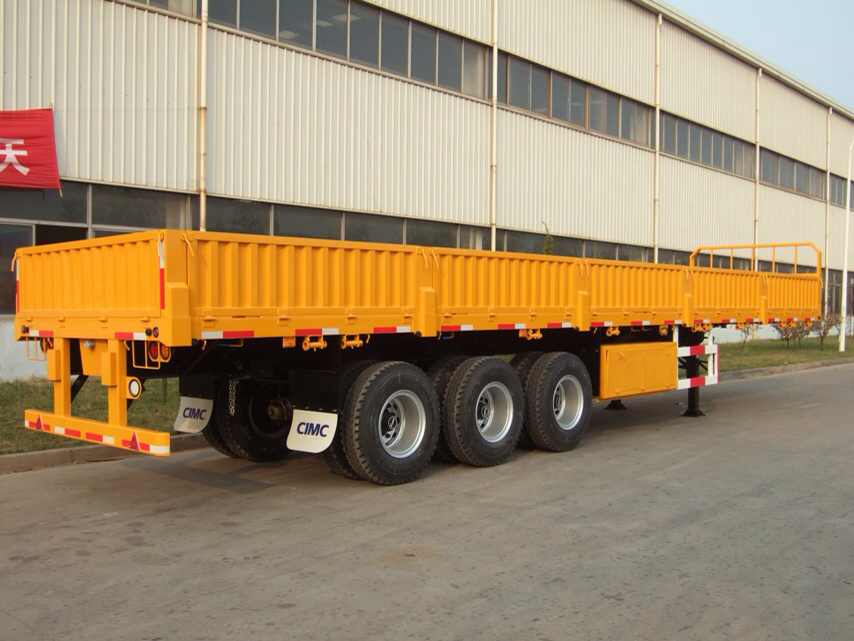

Three-axle Dropside Flatbed/Drop Sider/Cargo Semi-trailer

Length:Approx 12,493mm

Width:Approx 2,566m

Height:Approx2,906@ unload

King Pin Location: Approx 1,092mm from the front face of the front bolster

Landing gear position:Approx 2,520 from the king pin.

Axle spacer:Approx 7,000mm+1,310mm+1,310mm

King Pin Height:Approx 1,263mm with the chassis level

Weight:.

Tare Weight(Tolerance 0~-4%): Approx 8,500 kg

Max. Payload:Approx 60,000 kg

Gross Vehicle Weight:Approx68,500 kg

Steel Structure:

Material:High strength low alloy steel Q345 (350MPa) is used for welded I-beam and Q235 (235MPa) is used for the fabricated parts.

Main Beams:500mm deep x 146mm wide x 6mm web welded I-section main beam.

The top frame thickness is 14mm, The bottom frame thickness is 16mm.

Platform: checked steel floor, the thickness is 3mm.

Side wall: the height of front is 600mm.

OEM Parts Configuration:

King Pin:2” bolting king pin. Brand: JOST.

Twist Locks: twelve (12) units retractable ISO type twist locks

Landing Gear:JOST C200T, Lifting capacity 24T.

Suspension: heavy duty tri-axle suspension with equalizers 8-leaf spring.

Axles:  13T capacity axle × 3

Rims: 9*22.5, 10 Holes ISO,12 pieces+1piece

Tires:12R22.5, 12 pieces+1piece

Brake System: Dual air brake system, WABCO relay emergency valve, none ABS system.

Brake chamber: Type 30/30 on the rear two axles, Type 30 on the front axle.

Electrical System: 24 volt lighting systemwith modular wiring harness,7 way ISO receptacle infront of the front bolster.
