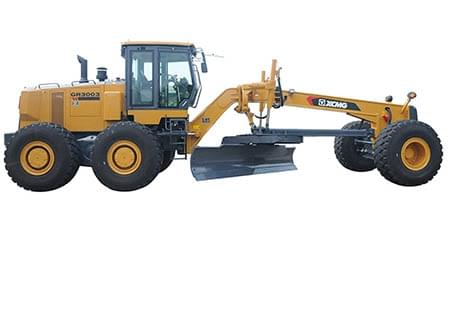

XCMG 300HP GR3003 motor graders equipment .
♥ The engine adopts EFI technology, and the emission of the whole engine meets the Euro III standard.
♥ Worm wheel box with overload protection, shovel tool has floating function.
♥ Adopt load sensing hydraulic system.
♥ Adopting color LCD and virtual instrument, it has the functions of electronic detection and three-level fault alarm.
♥ The transmission adopts electro-hydraulic control power shift, and the shift mode is king-shaped.
♥ Wet brake drive axle and double circuit hydraulic system are adopted for braking.
♥ The cab upholstery pillars are fully packed, with dual-purpose air conditioning, defrosting and fresh air exchange functions.
♥ High strength wear-resistant blade, long life.
♥ The whole machine meets CE certification requirements.
Item | GR3003 | ||
Basic parameters | Engine model | QSL 9 | |
Rated power/speed | 224kW/2100rpm | ||
Overall dimension (standard) | 10500X3100X3550 | ||
Total weight (standard) | 26000kg | ||
Tire specification | 23.5R25 | ||
Ground clearance (front axle) | 430mm | ||
Tread | 2745mm | ||
Space of front and rear axles | 7550mm | ||
Space of middle and rear wheels | 1893mm | ||
Performance parameters | Forward velocity | 5,8,11,19,23,40km/h | |
Reverse speed | 5,11,23km/h | ||
Tractive effort f=0.75 | 140kN | ||
Maximum gradeability | 25% | ||
Tire inflation pressure | 360kPa | ||
Working system pressure | 22MPa | ||
Working parameters | Maximum steering angle of front wheel | ±45° | |
Maximum slant angle of front wheel | ±17° | ||
Maximum oscillating angle of front axle | ±15° | ||
Maximum oscillating angle of equilibrium box | ±15° | ||
Maximum steering angle of frame | ±27° | ||
Minimum turning radius | 8.3m | ||
Scrape knife | Maximum lift height | 450mm | |
Maximum cutting depth | 500mm | ||
Maximum tilt angle | 90° | ||
Cutting angle | 28°—70° | ||
Angle of revolution | 360° | ||
Length & chord height | 4877x787mm | ||
Oil filling amount | Coolant | 50L | |
Fuel tank | 385L | ||
Engine | 24L | ||
Transmission | 38L | ||
Balancing box | 46L | ||
Drive axle | 28L | ||
Hydraulic oil | 135L |
