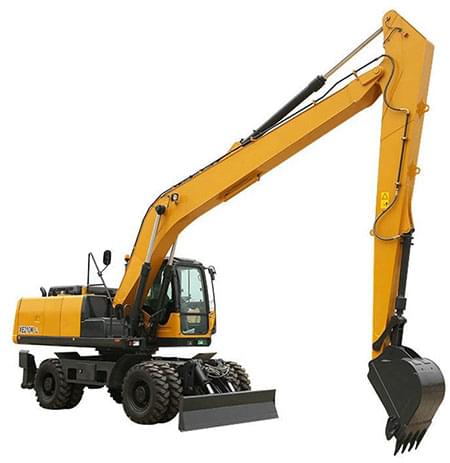

XCMG Excavator Long Reach 20 ton New Wheel Excavators Machine XE210WLL price.
This machine has used a new generation of independent researched and developed controllers as well as a compact parallel pump and focused on the matching between the engine power and the high-speed running to make full use of the engine power, improve the working efficiency and effectively reduce the fuel consumption. The reliability during heavy-load operations can be satisfied by virtue of its lightweight chassis with high rigidity and strengthened key parts.
As a model featuring excellent flexibility, high fuel efficiency and considerate operation reliability and based on the power system in accordance with the North America and Euro-III and China Stage-II emission standards, this machine can be provided with optional one-section booms, two-section booms, lengthened booms and other working mechanisms as well as other multi-functional implements, able to be widely used in highway bridges, housing construction, road engineering, construction of water conservancy works, port construction, general construction projects and other small and medium
Model | Unit | XE210WLL | |
Operating weight | Kg | 20600 | |
Bucket capacity | m³ | 0.5 | |
Engine | Model | / | 6B5.9 |
Output power | kW/r/min | 133/2000 | |
Maximum torque/speed | N.m | 708/1500 | |
Displacement | L | 5.9 | |
Fuel tank | L | 305 | |
Main performance | Rated flow | L/min | 2×220 |
Working Pressure | MPa | 31.4/34.3 | |
Hydraulic tank | L | 202 | |
Swing speed | r/min | 12 | |
Bucket digging force | kN | 80 | |
Arm digging force | kN | 70 | |
Min. turning radius | mm | 6500 | |
Travel speed | km/h | 9/31 | |
Gradeability | % | 70% | |
Hydraulic system | Main pump/Pilot pump | / | 2×Piston pump |
Appearance size | Overall length | mm | 10933 |
Overall width | mm | 2552 | |
Overall height | mm | 3763 | |
Counterweight clearance | mm | 1312 | |
Min. ground clearance | mm | 399 | |
tail turning radius | mm | 2820 | |
Wheel base | mm | 2960 | |
Tread width | mm | 1919 | |
Width of chassis | mm | 2495 | |
Distance from front bridge to rotary center | mm | 1900 | |
Hood height | mm | 2605 | |
Max. digging depth of dozer | mm | 58 | |
Dozer(width/height) | mm | 2495/564 | |
Working scope | Max. digging radius | mm | 12622 |
Max. digging distance | mm | 12456 | |
Max. digging height | mm | 11843 | |
Max. dumping height | mm | 9665 | |
Max. digging depth | mm | 8690 | |
Max. vertical wall digging depth | mm | 5835 | |
Max. lifting height of dozer | mm | 508 |
