  • XCMG Official 30 Ton Mobile Lifting Crane XCT30_M China Truck Mobile Crane Price
  • Product category : Truck Crane
  • Brand : XCMG
  • Product origin : CHINA
  • Delivery time : 1-90DAYS
  • Supply capacity : 1-500UNITS
  • Email : sales@xzunique.com
  • Send Inquiry Now

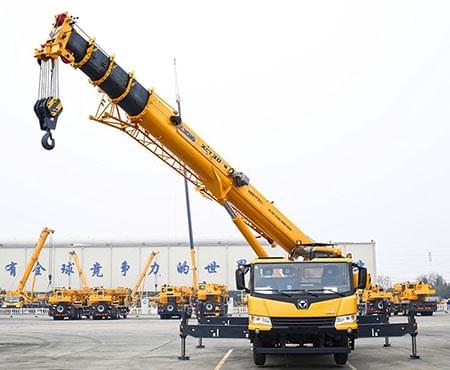

XCMG Official 30 Ton Mobile Lifting Crane XCT30_M China Truck Mobile Crane.

XCT30_M Truck crane is widely used for the lifting operations in Oilfields, mines, general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

* 5-section boom of 40.5m with U-type profile is adopted; the max. lifting load is 30t; the max. lifting height is 48.1m; the max. working radius is 38.4m; The performance takes the lead comprehensively.



* Various configurations for working conditions in oilfields and municipal constructions can meet the all the requirements.


* The entire machine is designed to endure high temperature, it is allowed to work in ambient temperature up to 60℃. With dust-proof parts equipped, the crane is applicable to applications in deserts.


Item

Unit

Parameter

Dimensions (length x width x height)

mm

12362×2550×3415

Total vehicle mass in travel configuration

kg

30000

Axle load

1st and 2nd axle

kg

6400

3rd axle

kg

11800

Engine rated power/rpm

kW/(r/min)

192/2200

Max. output torque/rpm

N.m/(r/min)

1000/1400

Max. travel speed

km/h

85

Min. turning diameter

m

20

Min. ground clearance

mm

261

Approach angle

°

16.5

Departure angle

°

13

Max. grade ability

%

40

Fuel consumption per 100 km

L

32

Max. total rated lifting capacity

t

30

Min rated working radius

m

3

Max. load moment

Base boom

kN.m

965

Fully-extended boom

kN.m

576

Outrigger span

Longitudinal

m

5.23

Lateral

m

6.4

Hoist height

Base boom

m

10.5

Fully-extended boom

m

40.3

Boom length

Base boom

m

10.4

Fully-extended boom

m

40.5

Jib offset angle

°

015 30

Boom raising time

s

≤38

Boom fully extending time

s

≤90

Hoistin
Hoisting speed (single line, 4th layer, no load)

Main winch

m/min

≥120

Auxiliary winch

m/min

≤90
