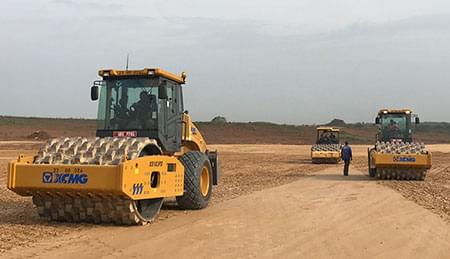

XCMG 22ton Single Drum Road Roller XS223 Vibrator New Road Roller

Remarkable compacting performance
Dual frequency and dual amplitude vibrating system and scientific and reasonable static linear load and excitation force ensure
the effective compaction of different materials and layers with different thicknesses.

Outstanding powertrain Hydraulic drive system
Adopt the closed anti-slip hydraulic drive system composed by imported heavy-load variable pump and motor, ensuring the good
driving performance and high gradeability.

Reliable Electrical System
The electrical system adopts imported water-proof, dust-proof, vibration-resistant electric connectors for increased reliability.
Imported maintenance-free battery has high start-up current and good adaptability.


Type
Unit
XS223
Operating weight
kg
22000
Load on front drum
kg
15000
Load on rear wheels
kg
7000
Static linear load
N/cm
704
Vibration frequency(Low/High)
Hz
33/28
Nominal amplitude(High/Low)
mm
1.86/0.93
Excitation force(High/Low)
KN
390/270
Travel speed
km/h
0~10.4
Steering angle
°
±33
Swing angle
°
±10
Theoretical gradeability
%
50
Min. external turning radius
mm
6500
Engine power
kw
142
Rated engine speed
r/min
2000
